CAS — Connect and SenseVibe

    Your machines.
    Now talking.

    CAS Vibe turns asset vibration into useful machine data. Know when equipment is off, idling or in use. Delivered straight to your own platform.

    You build the product for your customer. We take care of the sensor, connectivity and updates.

    Discuss your pilotHow CAS Vibe works

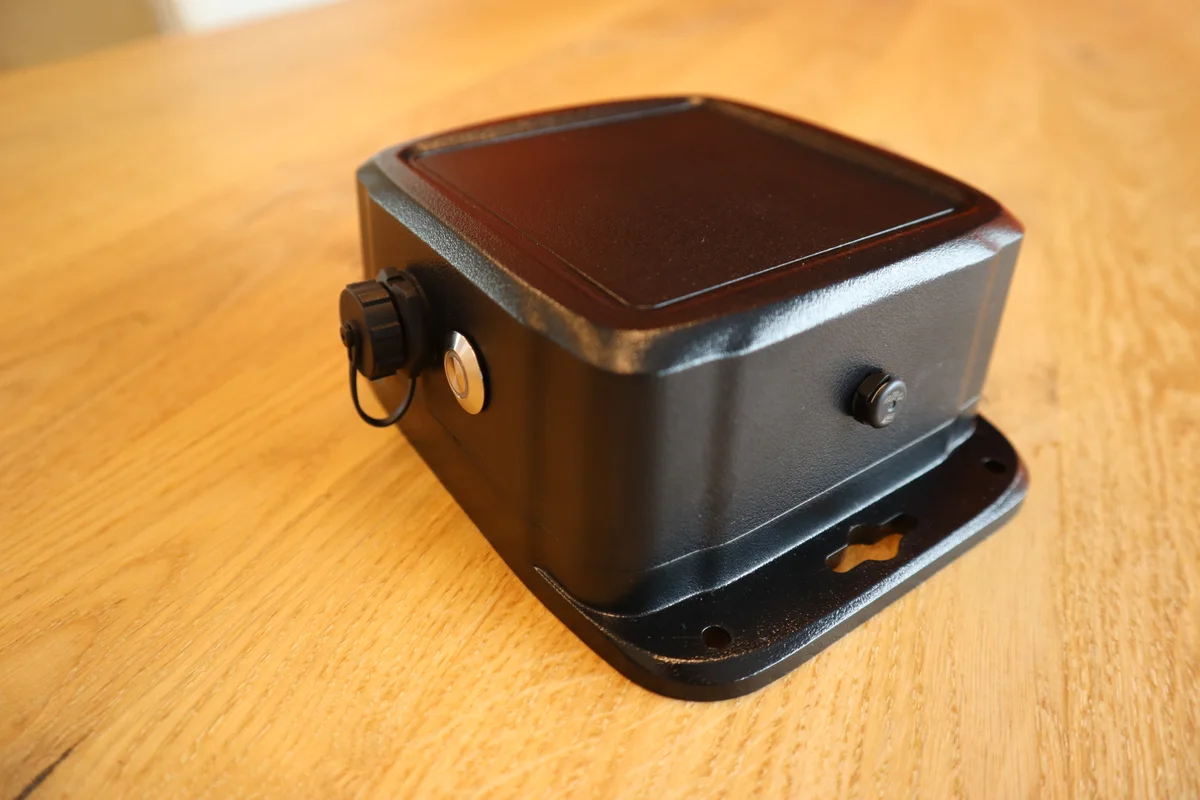

    CAS Vibe vibration sensor with a black enclosure, mounting flange, status button and covered charging port

    The machine is at work.

    Schematic illustration · not live data

    No CAN bus requiredCellular connectivityData in your platform

    From vibration to insight. Without wiring into the machine.

    For rental platforms, telematics providers and OEMs that want to include unconnected equipment. Start with a pilot on your machines and validate detection in the field.

    1. 01

      Mount

      Attach CAS Vibe to the machine frame, for example with cable ties. No connection to the CAN bus or machine power supply required.

    2. 02

      Recognize

      The sensor translates vibration patterns into off, idle and in use. We tune detection for the machine type and mounting position.

    3. 03

      Connect

      Data travels over the cellular network to your backend. Receive it through a signed webhook or retrieve it via the API.

    Your software. Now connected to the machine.

    Add machine activity to your existing product. You stay in control of the dashboard, reporting and customer relationship.

    Signed webhooks

    JSON messages over HTTPS, with HMAC-SHA256 and a timestamp for verification by your backend.

    API for history

    Retrieve data for your own processing, reports or to backfill missing messages.

    Built for integration

    Message IDs help prevent duplicate processing. Failed deliveries are retried automatically.

    What your platform receives

    Machine activity
    Wi-Fi / cellular location
    Battery & charging status
    Webhook / API
    Your platform

    Illustrative data flow, not live device data.

    Make asset activity visible.

    Rental & fleet management

    Show utilization and downtime in your rental or fleet software, including equipment without built-in telematics.

    Pumps & generators

    Bring activity data from standalone equipment into your platform. Tune detection to the way each machine type operates.

    Service & reporting

    Use measured activity as input for utilization reports and maintenance planning. Your software decides what to do with it.

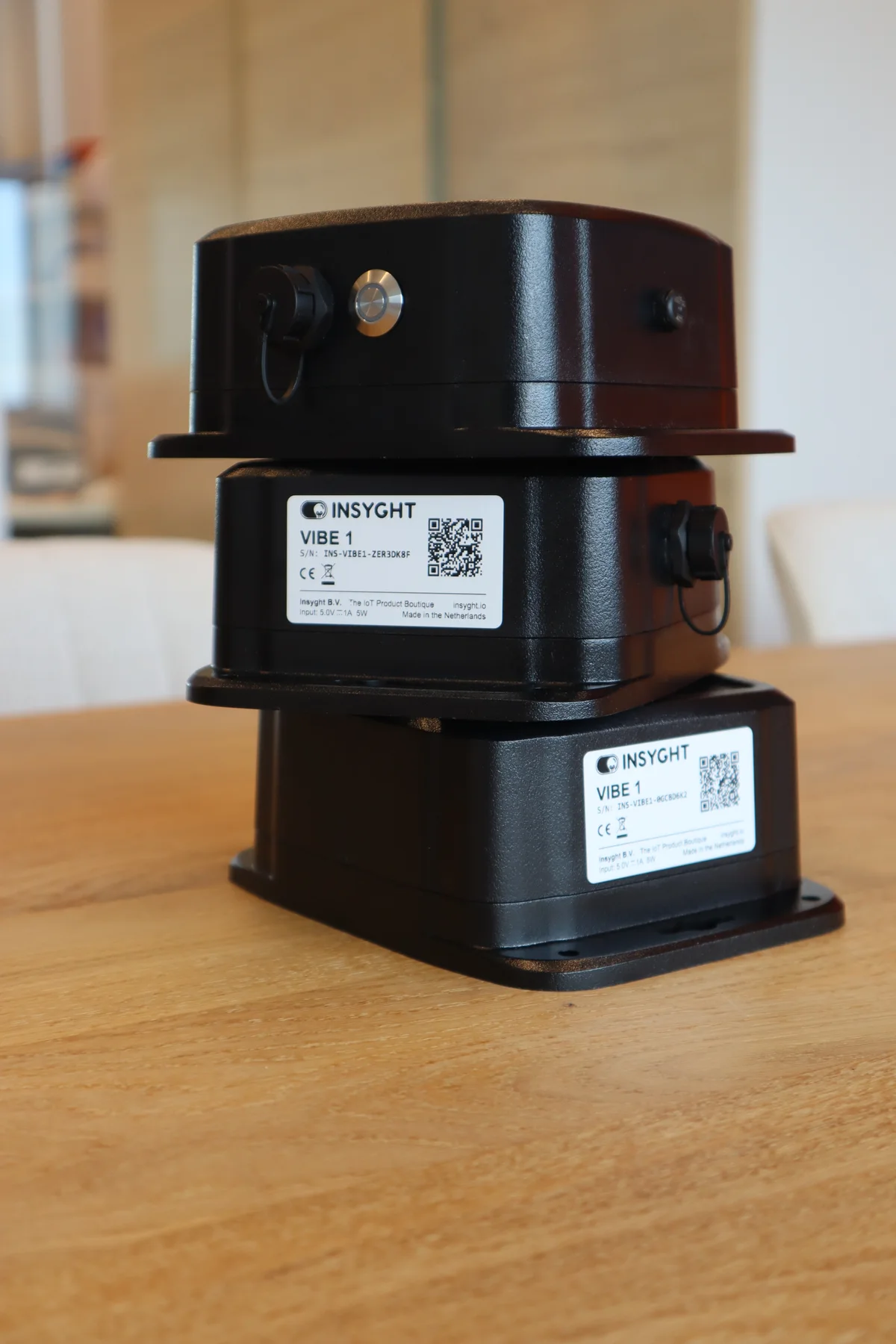

    Three black Insyght Vibe sensors from the first product series

    Your own product. Without starting from scratch.

    CAS means Connect and Sense. Vibe belongs to this family of customizable sensing solutions. We start with the existing sensor and agree which adaptations your application needs.

    Your machines

    Tune detection and thresholds to the vibration patterns and mounting in your application.

    Your workflow

    Adapt measurement and reporting intervals, firmware behavior and backend integration.

    Your identity

    Your own label, identifier and QR code. A different enclosure or hardware variant can be scoped as a development project.

    Hardware, with a team behind it.

    Also available as hardware-as-a-service. We scope development and the pilot separately, followed by a monthly fee per active device for the agreed connectivity, management, updates and replacements.

    What’s inside CAS Vibe?

    The current version, with a rechargeable battery. We tailor the configuration to your machines and application.

    Sensing
    Accelerometer-based vibration measurement; classification into off, idle and in use.
    Connectivity
    Cellular network. No local gateway or CAN bus connection required.
    Location
    Wi-Fi and cellular positioning; accuracy depends on the environment.
    Power
    Rechargeable battery with a covered USB-C charging port. Remote battery and charging status.
    Enclosure & mounting
    Black enclosure with a mounting flange, pressure vent and potted electronics.
    Integration & management
    Signed HTTPS webhooks, pull API, remote firmware updates and diagnostics.

    We validate detection, battery life and mounting during the pilot. This is not a certified meter for structural or ground vibration.

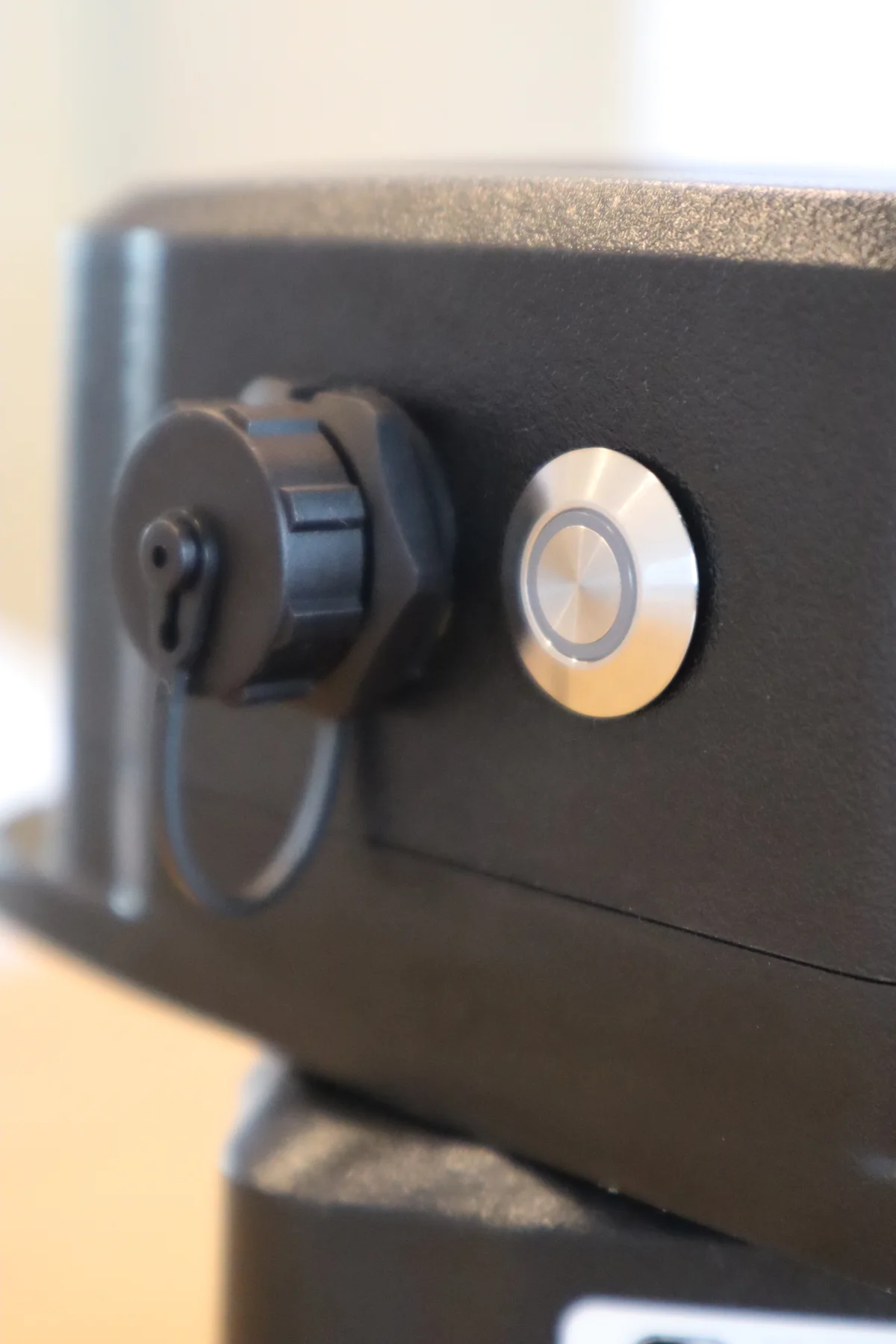

    Close-up of the covered charging port and status button on the Vibe sensor
    CAS — Connect and Sense

    One family. More ways to sense.

    CAS means Connect and Sense: our development platform for connected products. From solar-powered tracking and vibration sensing to hardware for edge AI. We adapt the solution to your application.

    CAS Solar

    Solar-powered asset tracking.

    CAS Vibe

    Turn asset vibration into machine activity data for your platform.

    You’re viewing this product

    CAS Edge AI Module

    nRF54LM20B with Axon NPU. The hardware foundation for local AI in your product.

    Which assets should start talking?

    Tell us which machines you work with, what you want to know and which platform needs the data. Together we turn that into a concrete pilot.

    Discuss your pilot
