CAS — Connect and SenseSolar

    A little sunshine.
    A lot of insight.

    CAS Solar is our solar-powered asset tracker, built on CAS: Insyght’s customizable IoT development platform. We adapt it to your assets, your environment and the information you need.

    Talk about your applicationSpecs & datasheet

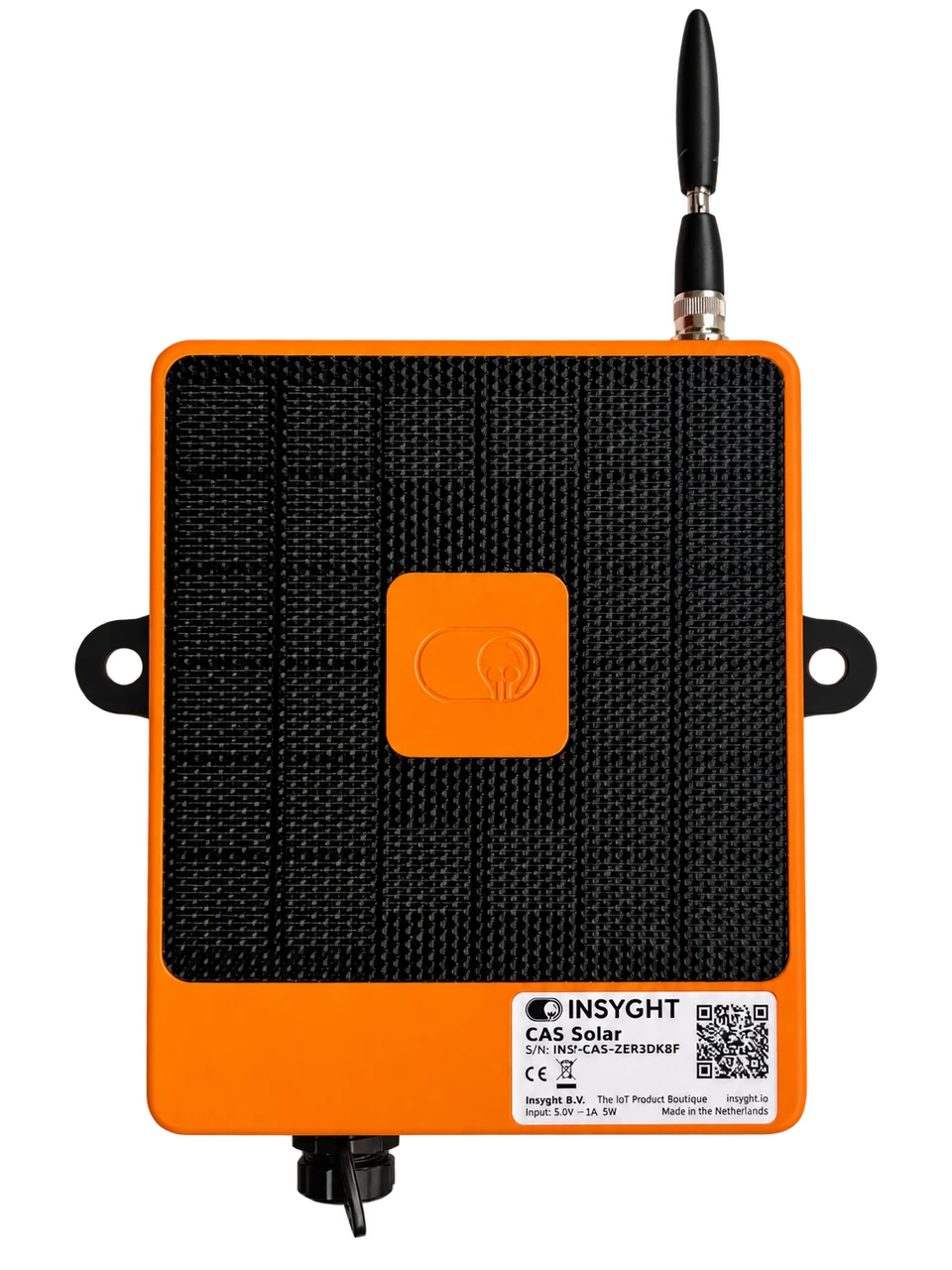

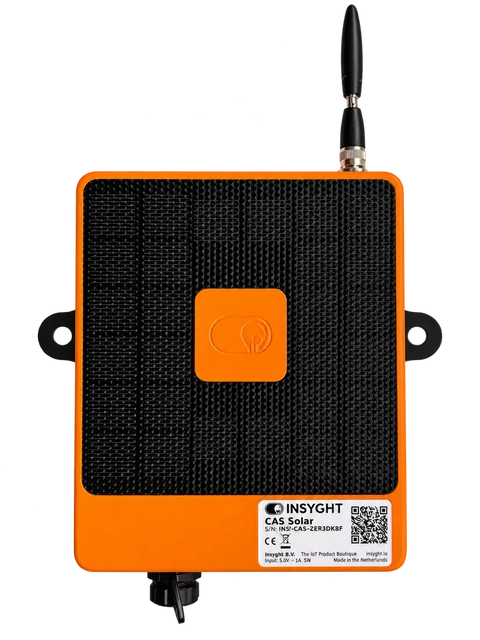

    CAS Solar with an orange enclosure, integrated solar panel, antenna and mounting points
    Solar-poweredAsset trackingCustomizable development platform

    Track your assets. Sense your environment.

    Track equipment in the field or use CAS as the starting point for water and industrial monitoring. We adapt the sensors and connections to the information you need.

    Containers & logistics

    Keep track of assets as they move between sites, storage and transport.

    Equipment & machinery

    Bring visibility to equipment working away from your own premises.

    Water & industrial sensing

    Connect industrial sensors to CAS to measure water level, pressure or temperature. We tailor the interface and power supply to your sensor and site.

    Our platform. Built around your needs.

    Start with CAS Solar instead of starting from scratch. We can customize the hardware, firmware and integrations for your application. Together we agree what needs to change and how to validate it.

    01

    Hardware for your environment.

    Connect external industrial sensors for water level, pressure or temperature. We adapt the interfaces, power supply and enclosure to your application.

    02

    Firmware for your application.

    We tailor measurements, reporting intervals and device behavior to the information you need, balancing them with the available solar energy.

    03

    Data in your own workflow.

    Connect device data to your dashboard or existing systems. We develop the integration around the tools your team already uses.

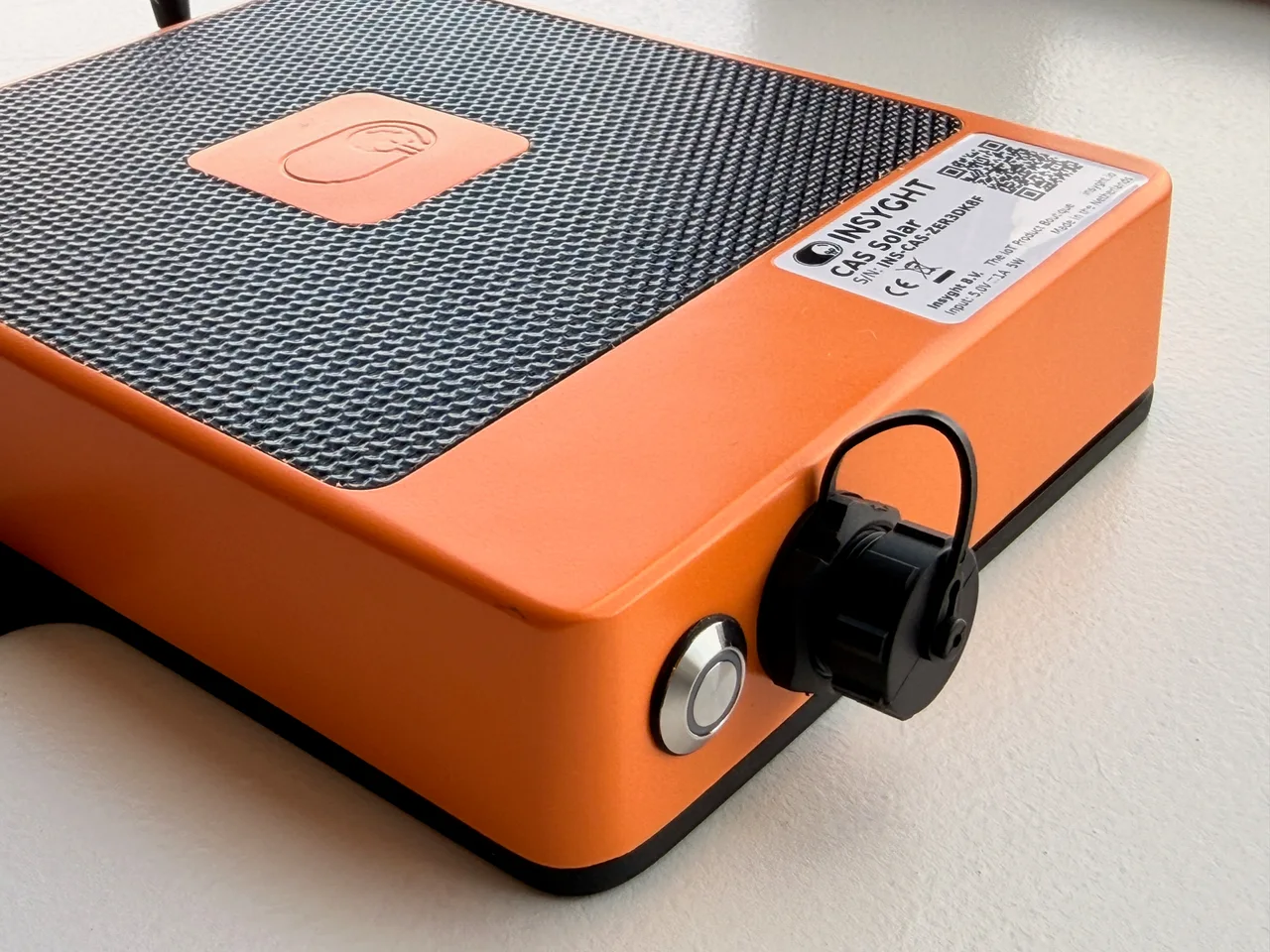

    Close-up of the orange CAS Solar enclosure and covered external connection
    A closer look at the enclosure and connection.

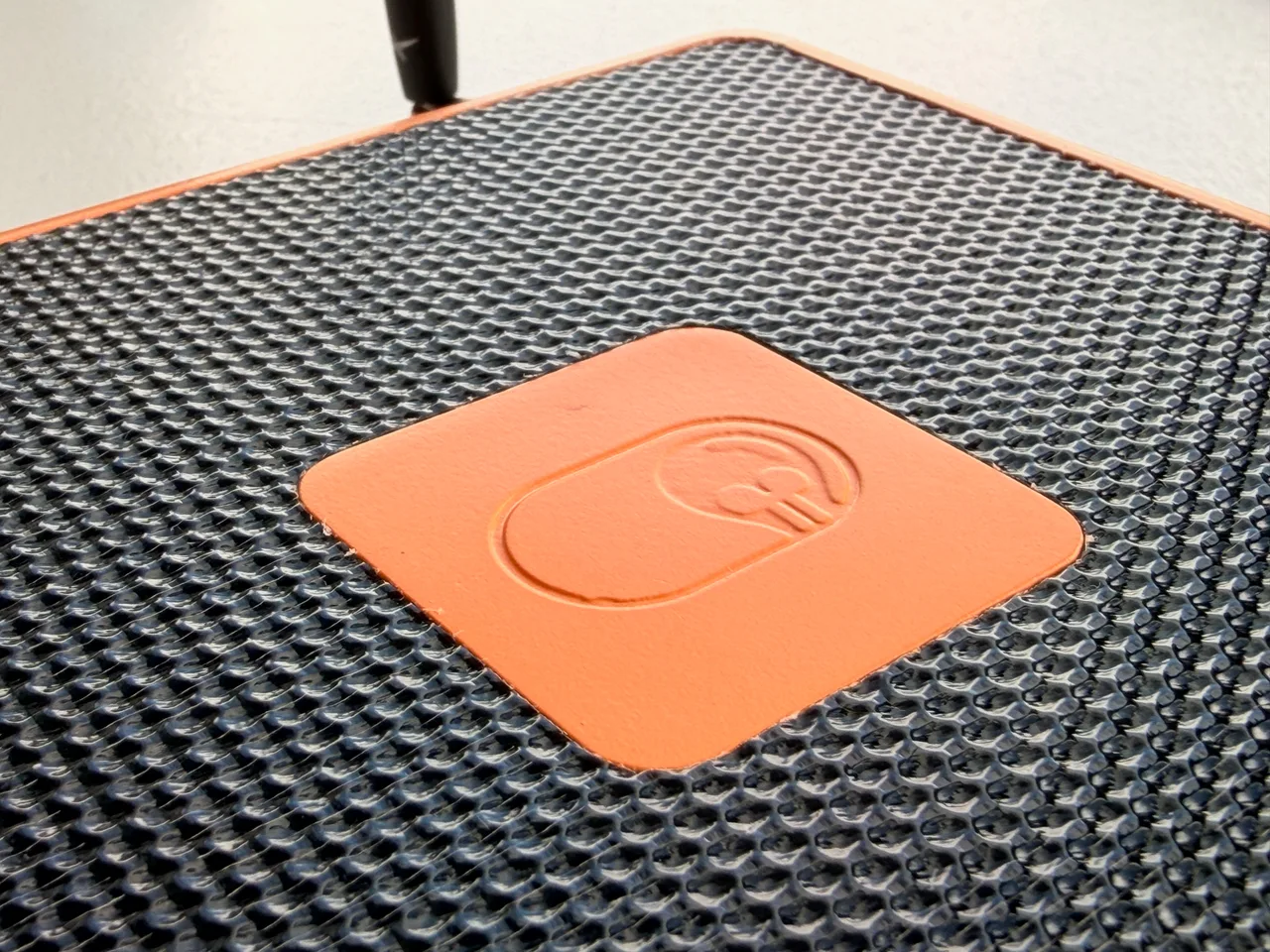

    Close-up of the CAS Solar panel and Insyght mark

    Small device. A lot on board.

    From precise positioning to automatic backfill after a connection drops. Here is what is inside CAS Solar.

    L1 / L5

    Dual-band GNSS

    u-blox F10 · typical 1.5 m CEP under open sky

    10 Ah

    Energy on the move

    37 Wh battery · 2 W solar panel with MPPT

    5 min

    Positions while moving

    Configurable from 1–15 min · daily heartbeat when parked

    IP67

    Made for outdoor use

    Fully potted electronics and battery

    Connectivity
    LTE-M / NB-IoT · Bluetooth LE 6.0 service interface
    Without coverage
    4 MB position buffer · automatic ordered backfill
    Motion
    3-axis accelerometer · wake-on-motion · shock and vibration logging
    Operating temperature
    −20 to +60 °C · charging at 0 to +45 °C
    Size & weight
    131 × 157 × 38 mm · 171 mm over mounting flanges · approx. 650 g
    Integration & updates
    REST API, webhooks, CSV · remote firmware and configuration

    According to datasheet v0.1. More than 4 weeks without sun at 5-minute tracking; autonomy depends on configuration, coverage and sunlight. Specifications subject to change.

    Evaluation stage: CE certification (RED, EMC, RoHS) is pending. Units are evaluation samples, not for general sale.

    The full datasheet. In your inbox.

    All specifications, connections and mounting dimensions in one PDF. Enter your email address and we will send you the download link.

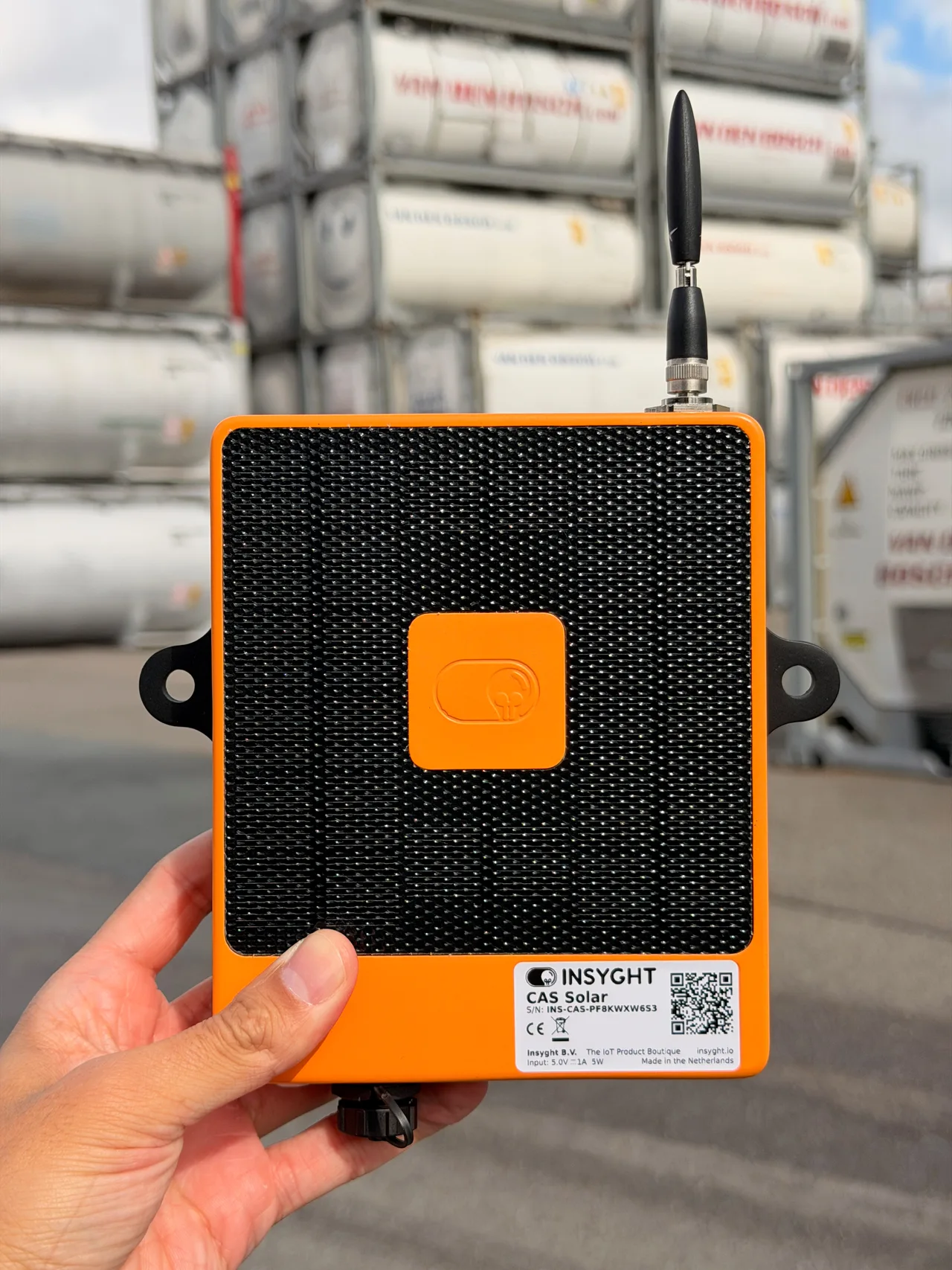

    CAS Solar held in front of tank containers in an outdoor storage yard
    CAS Solar, out in the field.

    Hardware you can hold. A team you can talk to.

    CAS Solar is an Insyght product. The people developing the hardware and firmware are also the people helping you turn a field application into a working deployment.

    CAS — Connect and Sense

    One family. More ways to sense.

    CAS means Connect and Sense: our development platform for connected products. CAS Solar brings it to solar-powered tracking; the same foundation can be adapted to other sensing applications.

    CAS Solar

    Solar-powered asset tracking.

    CAS Vibe

    Talk to us about vibration and condition sensing.

    Explore a sensing application →

    What should your CAS do?

    Tell us what you want to measure, where the device will operate and which systems it needs to connect to. Together we define the adaptations and development scope.

    Talk about your application
    • Sensors
    • Enclosure
    • Firmware
    • Integrations
    Your application. Your CAS.
